Most Reliable

เสถียรภาพสูงสุดของการส่งต่อกำลังไฟฟ้า

PX SMART PDUs (IP-PDUs) is designed for small and medium-sized data center. Via Web interface, it offers reliable power distribution and metering at the inlet level and support environment sensors to monitor temperature and humidity. The PX SMART PDUs makes it easy to make informed capacity planning decisions and to increase availability and energy efficiency. Safe and reliable in-field maintenance without affecting power supply to IT equipment.

Download Catalog (PDF)

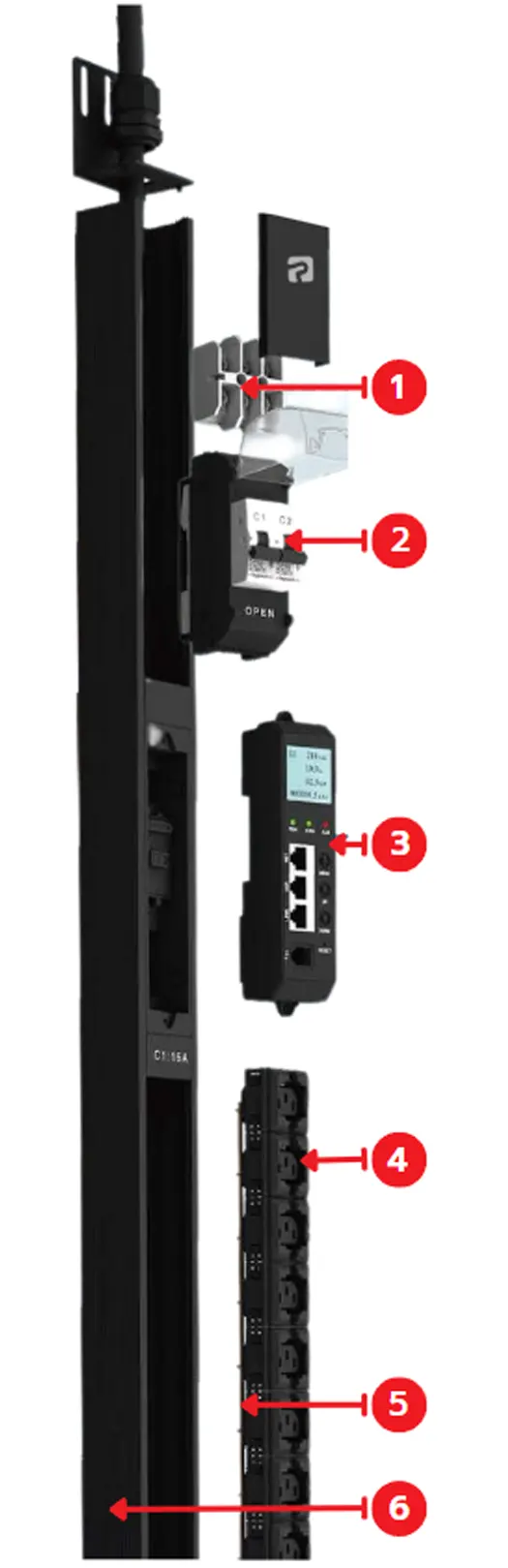

Product Features

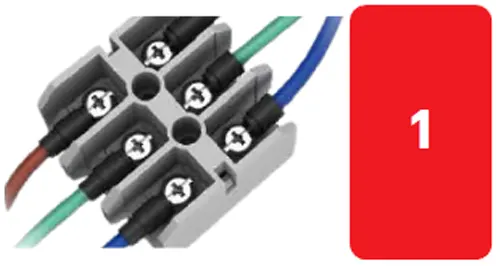

Terminal block

Professional manufacturing process makes terminal block solid and reliable; terminal block box provides enough space for onsite cable connection.

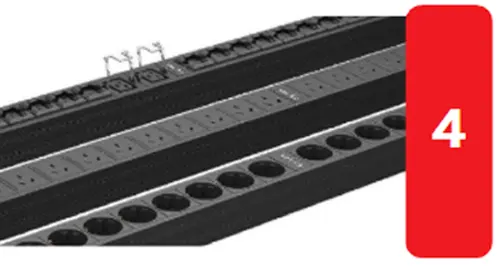

Outlets

A wide variety of outlets including IEC, GB, UK, NEMA etc. are available for easy and flexible configuration which make your PDU unique.

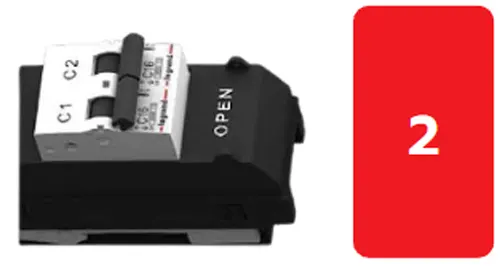

Circuit breaker

High sensitive Legrand circuit breaker secures the IT devices and reduces the accidental losses.

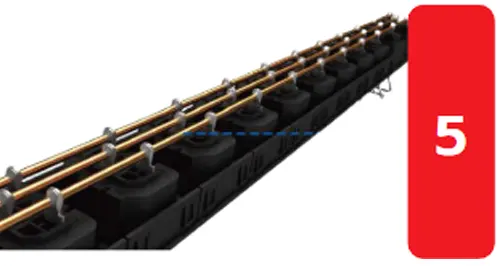

Copper bar

High quality Copper Bar which has better elasticity, electrical conductivity and wear resistance; automatic welding process ensures quality consistency and reliability.

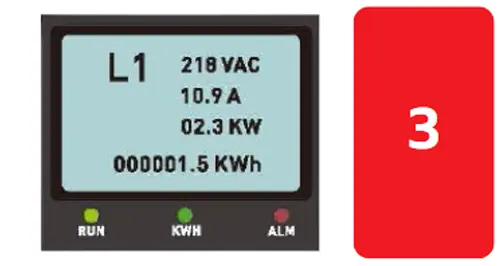

IP module

Hot swap module monitors critical electric data locally and remotely; metering accuracy 1 %; threshold setting & multi mode alerts make data center safer.

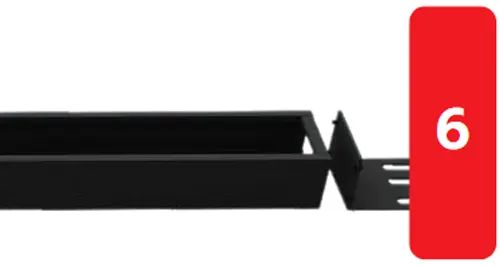

Housing

High-strength and eco-friendly aluminum alloy material provide safer protection. Customizable size and color give unique features to customers.

Main Functions

Monitor

  • Remotely monitor voltage / current / power / real power / power factor / energy consumption at inlet level.
  • Remotely monitor circuit breaker on/off status.
  • Remotely environment monitoring Temperatures and Humidity.

Control and Configure

  • User-defined threshold settings of voltage / current at inlet level.
  • User-defined threshold settings of Temperature and Humidity.
  • Support local and remote management via Web, SNMP, Telnet
  • Support standard communication protocols such as SNMP V1, V2, V3, DHCP, HTTP(S), IPv4, NTP, SMTP(S), TFTP and Modbus RTU.
  • Perfectly compatible with PowerConneX Manager software to manage Max 1000 PDUs.
  • One IP address support up to 5 IP-PDUs via daisy-chain

Alarm

Thresholds of critical electric parameters can be set to send alerts. When risk occurs, PDU buzzer beeps and the LCD indicator flashes; at the same time, E-mail and Trap alerts will be sent to the administrator automatically which keep them well notified of the running status and help them lower the management risks.


Customization is available.
